Description:

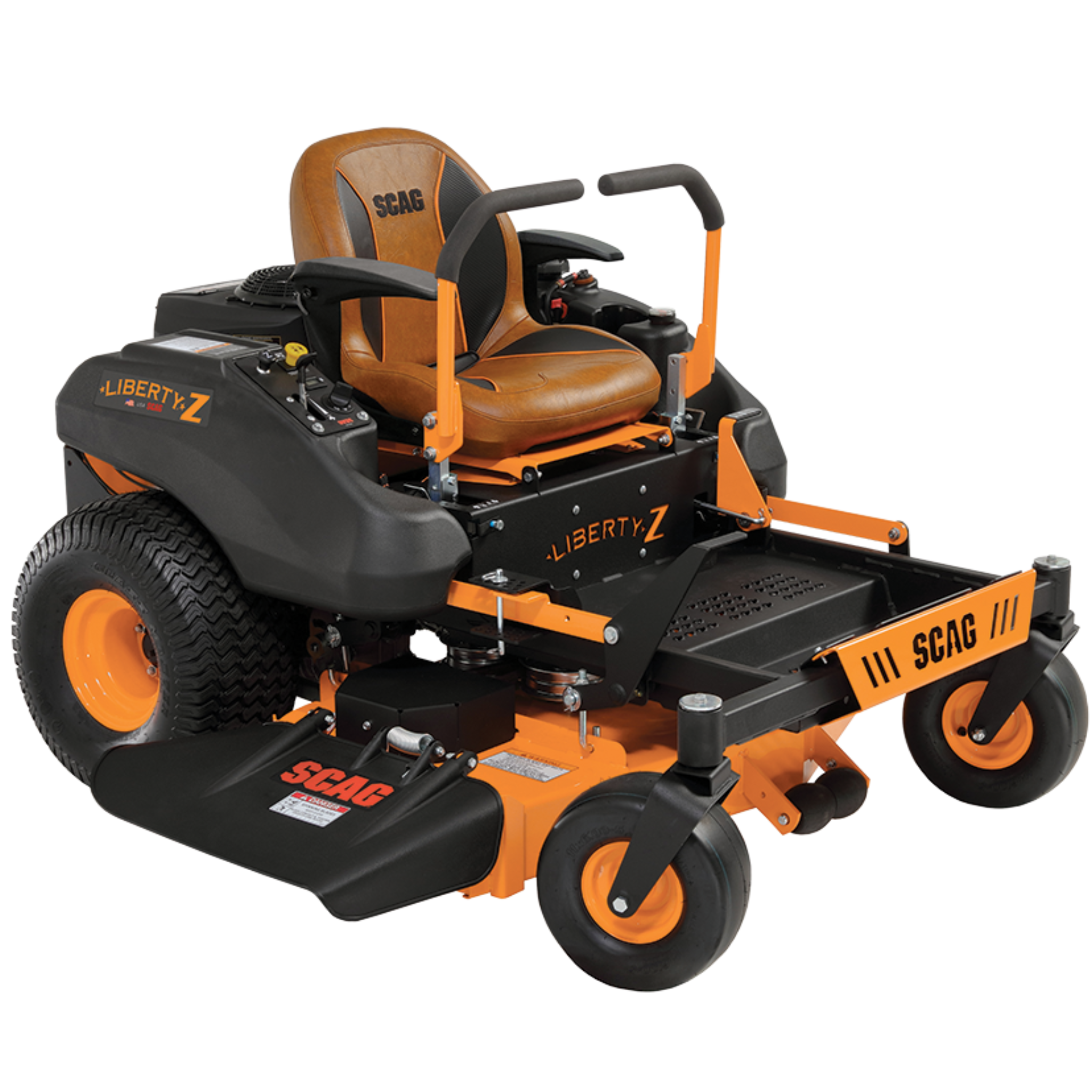

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, ensuring excellent starting and stopping power for the cutter deck. It features an adjustable air gap for extended durability.

Deep, Fabricated, and Welded Cutter Decks

• Heavy-duty Hero Cutter Deck Design: The Liberty Z mower incorporates a deep, fabricated cutter deck that excels at handling high volumes of grass at increased speeds. The deck is designed for optimal quality-of-cut and is built to withstand rigorous use.
• Heavy-duty, Aluminum, Sealed Ball Bearing, Blade-Drive Spindles: Ensures reliable performance season after season.

High-Strength Steel Frame

• Solid Design for Years of Dependable Service: The main frame is constructed from tubular steel, providing unmatched strength and durability.

Low-Maintenance Mower Design

• More Uptime: The Liberty Z is designed with fewer grease points, enhancing operator convenience and ease-of-ownership.

Proven Transaxles

• Speeds Up to 7 MPH: Equipped with proven dual hydro transaxles (Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 depending on the model), ensuring smooth and solid power delivery to the drive wheels.

Contoured, Bolstered, High-Back Seat

• Ride in Comfort: The ultra-comfortable seat is adjustable with tools, contoured for improved comfort, and features armrests. Armrests are standard on 48″, 52″, and 61″ models, with an optional kit available for 36″ and 42″ models.

Easy Foot-Pedal Deck Lift

• Easy Up, Easy Down: The foot-pedal cutter-deck lift is spring-assisted, making raising and lowering the cutter deck smooth and effortless.

Powerful and Efficient Engine Options

• Reliable Power, Up to 27 HP: Choose from a variety of proven air-cooled V-twin engine options, providing ample power to tackle a wide range of mowing tasks effectively.

Specification:

GENERAL

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with armrests, adjustment forward and back (tools required)
• DRIVE SYSTEM
• Drive System Type: Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• DECK
• Cutting Width: 52″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) – for 52″ Liberty Z
• Adjustable air-gap for extended life.
