Description:

21" Walk Behind Mower, Push

Features:

• Push type
• 3 in 1 with Clip Director® - mulch, bag, and discharge
• Honda GCV170 engine with Auto Choke System
• Superior Mulching and Bagging: The HRN mowers offer superior cut quality whether you're mulching or bagging, even in tough mowing conditions.
• 3 in 1 system with Clip Director®: Simply slide the Clip Director for mulching, bagging, or discharging versatility. No attachments required.
• MicroCut® Twin Blades System: Stacked and offset twin blade design provides superior cut quality and smaller clippings for better mulching and bagging.
• Honda GCV170 Engine: Reliable, easy starting power to tackle the toughest mowing conditions.
• Honda Auto Choke™ System - easy starting: No engine choke required! Just start the mower and go!
• Easy Fold Quick Release handle for easy height adjustment and storage: Easily adjust the handle to 2 comfortable mowing positions, or fold over for storage.
• Improved Maneuverability: 2-Way Ratchet System improves maneuverability and reduces effort to turn in a tight radius, drastically reducing pull-back force
• Dual-Lever Height Adjustment System: User-friendly levers conveniently adjust to 7 cutting heights (1" to 4")
• Heavy-Duty 21" Steel Deck: Innovative Honda design optimizes air flow for superior mulching and bagging
• Easy Maintenance: Smart Engine Layout offers a large fuel tank spout, easy oil changes, and easy access to spark plug and air filter.
• 8" High Traction Wheels: Excellent traction in a variety of mowing conditions.
• Large easy off 1.9 bushel grass bag: Our large capacity grass bags are balanced so they are easy to empty, saving you time and effort.
• Flywheel brake safety system: Quickly stops the engine when you let go of the flywheel brake lever.
• Manual fuel shut-off valve: The fuel valve can be shut off for transport, storage, or to performance maintenance.
• 3 year residential warranty: You can rest easy, knowing your lawn mower is covered from top to bottom for 3 full years.
• 90 day commercial warranty

SPECIFICATIONS:

• Engine: GCV170
• Deck Material: Steel, 16 ga
• Cutting Width: 21 in.
• Mowing height range: 1 in.-4 in.
• Mowing height adjustments: 7
• Drive Control: N/A
• Transmission: N/A
• Ground speed: N/A
• Starter: Recoil
• Choke System: Automatic
• Drive: N/A
• Handle: 1 in. Steel Tube
• Handle Height Positions: 2
• Wheels: 8 in. Plastic
• Ball Bearing Wheels: Sintered metal bushing - Rear only
• Standard Functions: 3 in 1: Mulch, Bag, Discharge
• Bag: Standard
• Bag capacity (bushels): 1.9
• Blade(s): Twin blades (MicroCut System®)
• Blade Control: Flywheel brake
• Side/Rear Discharge: Rear standard
• Dry weight: 73 lb.
• Operating Weight: 76 lb.
• Residential warranty: 3 years
• Commercial warranty: 90 days
• CA Compliant: Yes

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

The Raptor XDX is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

 Key Features

• 21.5hp, 23hp & 24hp Kawasaki Engines
• 48", 54" & 60” decks
• 8mph mowing speed
• 3-year / 300 hour limited warranty
•  Commercial Grade Deck
• Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
•  Extra High-back Seat
• A premium extra high-back seat with armrests.
•  22" BigBite™ Tires
• More aggressive tire to handle tough jobs.

Features:

• Welded Steel Deck: Fabricated from welded steel, enhancing durability and extending the mower's lifespan.
• Wider Stance: Designed to offer ample room, contributing to operator comfort during operation.
• SmoothTrak Steering: Precision control system enabling effortless trimming and maneuvering around obstacles.
• Bolstered Seat: Provides a comfortable ride with armrests and airflow to the back, ensuring operator comfort.
• Rubber Floor Mat: Standard on all Raptor models, minimizes vibration on the operator's feet, enhancing comfort during prolonged use.
• Fabricated Frame: Features a continuous one-piece 1½ inch by 3 inch welded tubular frame for structural integrity and robustness.
• Foot-Operated Deck Lift: Easily adjust the deck height between 1.5" - 4.5" with foot operation, facilitating customization during mowing.
• Easy to Service: Maintenance is simplified with features like the flip-up seat pan, removable floor pan, and vented pulley covers, ensuring easy access for servicing.
• Exclusive BigBite Rear Tires: Developed in collaboration with the tire manufacturer, offering enhanced traction and performance.
• Kawasaki® Power: Equipped with a V-Twin Kawasaki® Engine, providing reliable power for efficient operation.

Specification:

• Cutting Width: 60"
• Engine: Kawasaki FR730
• Engine Horsepower: 24 HP
• Transmission: Hydro-Gear ZT-3100® Dual Hydrostatic
• Fuel Capacity: 3 gallons
• Ground Speed (FWD): Up to 8 mph
• Cutting Height: 1.5" to 4.5"
• Front Tire Size: 13 x 6.5 inches
• Drive Tire Size: 22 x 11-10 BigBite™
• Warranty: 3 Year Warranty (Residential) or 1 Year Warranty (Commercial), 300 hour limit

Engine Details:

• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Limited

Transmission Details:

• Type: Dual Hydrostatic
• Technology: Hydro-Gear ZT-3100®
• Warranty: 3 Year Limited

Additional Features:

• Steering: Integrated with steering levers
• Cutting Width: 60"
• Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
• Front Tire Size: 13 x 6.5 inches
• Drive Tire Size: 22 x 11-10 BigBite™
• Weight: 710 lbs
• Height: 43.7 inches
• Length: 71.1 inches
• Width w/ Chute Up: 62.2 inches
• Tire-to-Tire Width: 48.6 inches
• Productivity (Acres per Hour): 3.88

Warranty:

• Residential: 3 Year/300 hour
• Commercial: 1 Year/300 hour

Bagging Systems:

• 60" Model: Powered 2-bag, 7.2 bushel capacity
• Dimensions: 92.3" (Width) x 69.2" (Height)

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

72" Velocity Plus™ Cutter Deck, 37 HP Briggs Vanguard™ BIG BLOCK™ EFI - electronic fuel injection. Velocity Plus Cutter Decks: 61" or 72" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Ogura PTO Clutch Brake: Strong, Adjustable Clutch for Long Life: The Ogura GT5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 350 ft. lb. of holding strength, and an adjustable air gap for long life. Hydro-Gear ZT-5400 Transaxles: Speeds Up To 16 MPH!: Two-speed ZT-5400 transaxle lets you choose either Low Range to travel up to 12 mph or High Range for up to 16 mph. Internal 16 cc pumps and 21 cc motors help provide speed, power and torque. The transaxle's design greatly reduces hoses and possible leak points. Heavy-Duty, Double-Tube Steel Main Frame: Solid Design for Years of Dependable Service: The Cheetah™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Width	Weight	Height	Length
0 Inch	1400 Pounds	0 Inch	0 Inch

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability. Features may include: 48", 52" OR 61" CUTTING WIDTH The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Width	Weight	Height	Length
0 Inch	1180 Pounds	0 Inch	0 Inch

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.

Width	Weight	Height	Length
0 Inch	1450 Pounds	0 Inch	0 Inch

Description:

Sure, it's still easy to operate, still ready to conquer any terrain, and still built to last. But the new V-Ride™ II's exceptional results, even greater stability and unmatched comfort leave no doubt: It's a whole new ballgame. The V-Ride II is an ultra compact, agile, comfortable and stable stand-on mowing machine. It combines the speed and comfort of a rider with the space-saving convenience of a walk-behind mower. Despite its compact size, the V-Ride II boasts many full-sized features like dual hydraulic pump dual wheel motor drive system, coil-suspension platform, and a heavy-duty steel main frame. Pair a powerful Kawasaki FX, Kawasaki FS or Kohler EFI commercial-grade engine with a 36" Advantage™ or a 48", 52" or 61" Velocity Plus™ deck and you have an ideal combination of agility, power and performance.

Width	Weight	Height	Length
0 Inch	1005 Pounds	0 Inch	0 Inch

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Width	Weight	Height	Length
0 Inch	555 Pounds	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

• TRI-PLATE DECK TOPS:
• Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).
• FRONT BAFFLE CHAMBER:
• Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
• WEAR PAD:
• Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• Total Fuel Capacity: 9.5 gallons

Tires

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life

Width	Weight	Height	Length
0 Inch	1180 Pounds	0 Inch	0 Inch

Description

This isn't just any walk-behind mower. The 60V MAX* Super Recycler is what other mowers aspire to be. Leveraging time-tested Toro engineering, the Super Recycler delivers the perfect cut every time, while nourishing your lawn to provide a rich, green cut that landscape pros relish. Fertilize your lawn while you mow with Toro's Super Recycler® Cutting System. Our top-of-the line dual blade accelerators, deliver samurai sword sharpness, combined with under-deck wedges to shave down clippings into an ultra-fine mulch, adding nutrients, Lawn Vitamins, back into your lawn. Married with Vortex Technology and the commercial-grade Bagging Tunnel, Toro has enhanced the process of moving clippings around sending them further back into the mulching bag so you empty less often. Simply put, it’s the perfect expression of lawn mowing mulching or bagging. A mower’s dream.

Battery manufacturer rating = 60V maximum & 54V typical usage. Actual voltage varies with load.

Features:

• Power to Get the Job Done - Tackle any job in a single charge with the most powerful battery (L405) in its class and mow up to 50 minutes.
• Starts the First Time, Every Time - Start the first time and every time with reliable push-button start and low maintenance battery power.
• Mow at your own pace with Personal Pace Auto-Drive self-propel that adjusts to your walking speed.
• Supercharge your cut with Vortex Technology allowing greater under-deck airflow; delivering a lush green lawn.
• Advanced bag to hold more clippings and reduce overflow with the large, easy-to-empty mulching bag.
• Use any 60V Max* Flex-Force battery to power any and all of the 75+ tools in the all-season lineup.
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

• Bagger Capacity: 1.8 bushels
• Battery Charge Time (min): 180
• Battery Power: 60V Max L405 (7.5Ah, 405Wh)
• Battery Product Type: Full Tool (battery included)
• Battery Run Time (min): Up to 50 minutes
• Blade Design: Dual-blade with Accelerator
• Blade Tip Speed: 16,949 ft/min / 5,166 m/min
• Box Dimensions: 42.1 in. x 24.5 in. x 17.25 in. / 107.0 cm x 62.2 cm x 43.8 cm
• Deck Design: Super Recycler
• Deck Material: Aluminum
• Deck Size: 21 in / 53 cm
• Discharge Chute: Not Included in the box. The free discharge chute for walk behind mowers can be requested at time of registration at Toro.com/register
• Drive System: Personal Pace® Auto Drive Rear Wheel Drive
• Drive Type: Rear-Wheel Drive
• Forward Mowing Speed: Up to 4.0 mph / 6.4 kph
• Fuel Type: Battery
• Handle Type: SmartStow, 1-Piece, Adjustable Height
• Height of Cut: 1.0 - 4.0 in. / 2.5 - 10.2 cm
• Height of Cut Adjustment: 4-point
• Included in the Box: 60V Battery, 60V Charger, Grass Bag, Mower, Product Manual
• Motor: Brushless DC, 60V Battery L405 (7.5Ah, 405Wh)
• Mulch, Bag, Side Discharge: Bag standard, Mulch standard, Side discharge optional
• Number of Batteries Included: 1
• Number of Blades: 1
• Number of Chargers Included: 1
• Product Features: Battery Powered, Cast Aluminum Deck, Electric Start, Personal Pace®, SmartStow
• Product Type: Walk Behind Mowers
• Start Type: Push Button Start
• Voltage: 60V
• Weight: 90 lbs / 40.8 kg
• Wheel Height: Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
• Yard Size: Up to 1/3 acre

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

Introducing a mower that adjusts to you, with no knobs, no levers, no messing around. Grab the easy-to-steer handle, engage, and go - with Personal Pace Auto-Drive™. Supercharge your mowing with an amped airflow that requires less energy to cut more grass into teeny-tiny, clumpless clippings. That's our Vortex Technology™ giving you Lawn Vitamins™ for free. Throw on the grass bag and start your lawn vacuum that holds more so you empty less. In total, it's a boatload of features that easily make you and your lawn look great in less time. This machine starts the first time, every time, and is built to last with a 22 in. steel deck. Powered by a 6.25 ft-lb Gross Torque* Briggs & Stratton® EXI 150cc with electric start - no need to prime or choke. Includes added feature - no oil changes for the life of the engine, just top it off.

Features:

• A Mower That Adjusts to You - No knobs, no levers, no messing around. Grab the easy-to-steer handle and go with Personal Pace Auto-Drive.
• Supercharged Cutting Machine - We've supercharged the Recycler Cutting System creating a performance boosting machine through Vortex Technology.
• Super Bagger - Get the job done more easily than ever with our new Super Bagger, shaped for easier lifting, no-shake pouring and zero-hassle cleanup.
• Supercharged Cutting Machine - We've supercharged the Recycler Cutting System creating a performance boosting machine through Vortex Technology.
• Hassle-Free Maintenance - With a Toro, there's no oil change – ever; Just Top it Off.
• Time Saver - Cut a wider path with each pass with an extra-long 22 in. blade to mow more in less time.
• Bag On Demand. Easily change from mulching to bagging with the quick-connect bagging system.
• Traction High Wheels Provides Control - Delivering easier maneuverability through turns with greater cutting precision over uneven terrain.
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

General:

• Product Type: Walk Behind Mower
• Product Use: Residential
• Yard Size: Up to 1/2 acre
• Weight: 83 lbs / 37.6 kg
• Box Dimensions: 42.1 in. x 24.5 in. x 17.25 in. / 107.0 cm x 62.2 cm x 43.8 cm

Engine:

• Engine Brand: Briggs and Stratton
• Engine Model: 6.25 ft-lb Gross Torque* Briggs & Stratton® Exi 150 cc
• Engine Displacement: 150 cc
• Fuel Capacity: 0.2 gal. / 0.75 L / 0.8 Qt.
• Fuel Type: Gasoline
• Air Filter: Briggs & Stratton Part #593260
• Spark Plug: Briggs & Stratton Part #692051
• Recommended Oil Type: SAE 30
• Included in the Box: 18 oz. Bottle of Oil, Electric Start Charger, Grass Bag, Mower, Quick Start Guide

Cutting System:

• Deck Size: 22 in / 56 cm
• Deck Material: 14 Gauge Steel
• Height of Cut: 1.0 - 4.0 in. / 2.5 - 10.2 cm
• Height of Cut Adjustment: 4-point
• Number of Blades: 1
• Mulch, Bag, Side Discharge: Bag standard, Mulch standard, Side discharge optional
• Discharge Chute: Not included in the box (can be requested at time of registration at Toro.com/register)
• Bagger Capacity: 1.8 bushels

Drive System:

• Drive System: Personal Pace® Auto Drive Rear Wheel Drive
• Drive Type: Rear-Wheel Drive
• Self Propel System: Personal Pace
• Handle Type: 1-Piece, Adjustable Height - 2 positions
• Start Type: Push Button Start

Additional Features:

• CARB Compliant: Yes
• Guaranteed to Start Promise: 3-Year GTS
• Wheel Height: Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
• Product Features: CARB Compliant, Electric Start, High Wheel, Self-Propelled

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

Get it done and get on with your weekend. When you have a big yard and a busy schedule, you need Toro’s TimeMaster® on your side. It cuts a wider path on every pass so you can finish mowing faster. With a powerful Briggs & Stratton® OHV engine, you’ll have the perfect tool that you need to have the best yard in the neighborhood.

Features:

• Big Power - You'll enjoy great power and performance from a 10.00 ft.-lb. Gross Torque Briggs & Stratton® 223cc OHV engine.
• Time Saver - Finish jobs faster with the 30" deck.
• Dual-Force™ Cutting System - The Dual-Force cutting system and Toro® Atomic blades cut grass into a fine mulch for a superior quality of cut and a healthy, lush lawn.
• Pick Your Pace - You control the mowing speed with Personal Pace®.
• Quick Stow Storage Handle - The TimeMaster has two storage positions for easy compact storage and convenient handle height positions to insure a comfortable mowing experience for any operator.
• No Restarts - Leave the mower without restarts with Spin-Stop™ Blade Stop.
• 2 Point Height-of-Cut - You can easily adjust the deck height at 2 points for quick customization of your mowing height.
• Washout Port - Attach a hose to the mower deck to easily clean the under side of the deck.
• 3-Year Full Warranty & 3 Year Guaranteed-to-Start - Enjoy peace of mind knowing Toro stands behind its mowers with a 3-year guaranteed-to-start engine warranty and 3-year full warranty
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

• Air Filter: Briggs & Stratton Part #795066
• Bagger Capacity: 2.5 bushels
• Blade Engagement: Blade Override System (BOS)
• Box Dimensions: 41.9 in. x 33.0 in. x 25.3 in. / 106.4 cm x 83.8 cm x 64.1 cm
• CARB Compliant: Yes
• Deck Material: 13 Gauge Steel
• Deck Size: 30 in / 76 cm
• Discharge Chute: Included
• Drive System: Personal Pace® Rear Wheel Drive Traction Assist
• Drive Type: Rear-Wheel Drive
• Engine: 10.00 ft-lb Gross Torque* Briggs & Stratton 223 cc OHV
• Engine Brand: Briggs and Stratton
• Engine Displacement (cc): 223 cc
• Forward Ground/Transport Speed: Up to 4.5 mph / 7.2 kph
• Forward Mowing Speed: Up to 4.5 mph / 7.2 kph
• Frame: Cast-Aluminum Frame
• Fuel Capacity: 0.3 gal. / 1.1 L / 1.2 Qt.
• Fuel Type: Gasoline
• Guaranteed to Start Promise: 3-Year GTS
• Handle Type: Quick Stow Storage Handle
• Height of Cut: 1.25 - 4.25 in. / 3.2 - 10.8 cm
• Height of Cut Adjustment: 2-point
• Included in the Box: 18 oz. Bottle of Oil, Discharge Chute, Grass Bag, Mower, Quick Start Guide
• Mulch, Bag, Side Discharge: Bag standard, Mulch standard, Side discharge standard
• Number of Blades: 2
• Product Features: Blade Stop System, CARB Compliant, Deck Washout Port, High Wheel, Self-Propelled
• Product Type: Walk Behind Mowers
• Product Use: Residential
• Recommended Oil Type: SAE 30
• Self Propel System: Personal Pace
• Spark Plug Type: Briggs & Stratton Part #692051
• Start Type: Pull Cord
• Washout Port: Standard
• Weight: 140 lbs / 63.5 kg
• Wheel Height: Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
• Yard Size: Up to 1 acre

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

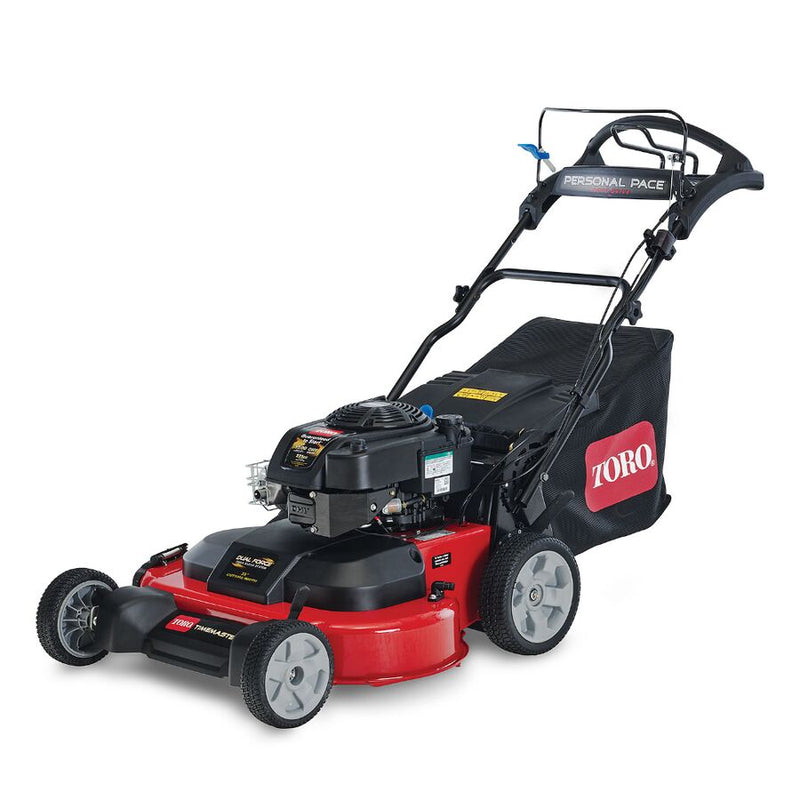

Description:

Get it done and get on with your weekend. When you have a big yard and a busy schedule, you need Toro’s TimeMaster® on your side. It cuts a wider path on every pass so you can finish mowing faster. With a powerful Briggs & Stratton® OHV engine on board, plus electric start for ultimate mowing ease, you’ll have the perfect tool that you need to have the best yard in the neighborhood.

Features:

• No pulling, just turn the key and you’re ready to mow with electric start.
• Great power and performance from the 10 ft.-lb. Gross Torque* Briggs & Stratton® 223cc OHV engine.
• Finish jobs faster with the 30" deck.
• Timed dual blades cut grass into a fine mulch for a superior quality of cut and a lush lawn.
• Mow at your own pace with Personal Pace Auto-Drive self-propel that adjusts to your walking speed.
• Quick Stow handle allows for easy, compact storage.
• Leave the mower without restarts with Spin-Stop™ Blade Stop.
• Easily adjust the deck height at 2 points to quickly customize your mowing height.
• Attach a hose to the washout port on the mower deck to easily clean the under side.
• Enjoy a 3-year guaranteed-to-start engine warranty and a 3-year limited warranty.**
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specification:

• Air Filter: Briggs & Stratton Part #795066
• Blade Design: 0.135 in. / 0.343 cm Thick Steel
• Blade Engagement: Blade Brake Clutch (BBC)
• Box Dimensions: 41.75 in. x 33.0 in. x 24.5 in. / 106.04 cm x 83.82 cm x 62.23 cm
• CARB Compliant: CARB Compliant
• Deck Design: Recycler
• Deck Material: 13 Gauge Steel
• Deck Size: 30 in / 76 cm
• Discharge Chute: Included
• Drive System: Personal Pace® Rear Wheel Drive Traction Assist
• Drive Type: Rear-Wheel Drive
• Engine: 10.00 ft-lb Gross Torque* Briggs & Stratton 223 cc OHV
• Engine Brand: Briggs and Stratton
• Engine Displacement (cc): 223 cc
• Forward Ground/Transport Speed: Up to 4.5 mph / 7.2 kph
• Forward Mowing Speed: Up to 4.5 mph / 7.2 kph
• Frame: Cast-Aluminum Frame
• Fuel Capacity: 0.3 gal. / 1.1 L / 1.2 Qt.
• Fuel Type: Gasoline
• Guaranteed to Start Promise: 3-Year GTS
• Handle Type: Quick Stow Storage Handle
• Height of Cut: 1.25 - 4.25 in. / 3.2 - 10.8 cm
• Height of Cut Adjustment: 2-point
• Included in the Box: Grass Bag
• Mulch, Bag, Side Discharge: Bag standard
• Number of Blades: 2
• Product Features: Blade Stop System
• Product Use: Residential
• Recommended Oil Type: SAE 30
• Self Propel System: Personal Pace
• Spark Plug Type: Briggs & Stratton Part #692051 (Not Sold on toro.com)
• Start Type: Electric
• Transmission: Variable Speed
• Washout Port: Standard
• Weight: 150 lbs / 68 kg
• Wheel Height: Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
• Yard Size: Up to 1 acre

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

The Z Master 6000 Series is one of Toro’s most advanced zero-turning radius mowers. It’s also one of our most comfortable. This Z Master® 6000 Series mower has a 31 hp (23.12kW) Kawasaki® FX 999cc Engine with 60 in. (152 cm) TURBO FORCE® deck.

Features:

Adjustable Discharge Baffle: Standard, Tools-Free

Air Filter: Heavy-Duty Canister Air Cleaner

Armrests: Standard

Blade Tip Speed: 18,500 ft/min / 5,638 m/min

Blades: 0.204 in. (0.5 cm) heat-treated steel

Box Dimensions: 91 in. x 70 in. x 52 in. / 231.1 cm x 177.8 cm x 132.1 cm

CARB Compliant: Not CARB Compliant

Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)

Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Clutch: Electromagnetic

Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts

Deck Design: 80-Grade 7-gauge 60" (152 cm) TURBO FORCE® w/bull-nose bumper

Deck Material: 7 Gauge Steel

Deck Size: 60 in / 152 cm

Discharge Chute: Rubber

Drive System: Unitized Pumps 16cc and Wheel Motors 17.1 cir

Drive Tires: Airless radial 24" (60.96 cm) Michelin X Tweel Turf Tires

Engine: 31 HP* Kawasaki® FX 999cc

Engine Brand: Kawasaki

Engine Displacement (cc): 999 cc

Engine Horsepower: 31.0 hp

Forward Ground/Transport Speed: Up to 11.5 mph / 18.5 kph

Front Bumper: Reinforced Bull-Nose

Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.

Fuel Type: Gasoline

Height of Cut: 1.0 - 5.5 in. / 2.5 - 14.0 cm

Hour Meter: Standard

Hydraulic Fluid: Premium synthetic

Product Features: Electric Start, Gas Powered, Hour Meter

Product Type: Zero Turn Mowers

Roll-Over Protection (ROPS): Folding; Standard

Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent

Spindle Bearings: Maintenance-free

Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum

Start Type: Electric

Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened

Steering Dampeners: Standard Dampers

Weight: 1,297 lbs / 588.3 kg

Width	Weight	Height	Length
	1354 Kilograms		0 Inch

Description

GrandStand® HDX 52" (132 cm) 31 HP 999cc (72506)

The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.

Highlights

• Proven Platform - The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• Ease of Use - More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
• Big Time Productivity - 24" tires with big block horsepower allow you to travel at 12 mph.
• Built Tough - The 7 gauge TURBO FORCE® deck with the i-beam front end is built to last and backed by our impressive warranty.

Features:

• Proven Platform: Uses the industry-proven TURBO FORCE® cutting deck that is built to withstand the extreme conditions of long, tough days on the job.

Specification:

• Engine: 31 hp Kawasaki FX921 999cc
• Fuel Capacity: Gas/10.5 gal (39.7 L)
• Cutting Width: 52" (132.1 cm)
• Adjustable Discharge Baffle: Standard, tools-free
• Air Filter: Heavy-Duty Canister Air Cleaner
• Anti-Scalp Wheels: Standard
• Blade Type: 0.204" (0.5 cm)
• Caster Tires: 13" x 6.5" (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Foldable Operator Platform with Suspension
• Deck Design: 7-gauge 52" (132.1 cm) TURBO FORCE® 2 w/bull-nose bumper
• Discharge Chute: Rubber
• Drive System: Tuff Torq TZT13s 13cc IHTs
• Drive Tires: 24" X 10.5" - 12" (61 cm x 26.7 cm - 30.5 cm)
• Engine Horsepower: 31 hp
• Engine Displacement: 999cc
• Ground Speed: Up to 12 mph forward (19.3 km/h)
• Height of Cut: 1.5" - 5.0" (3.8 cm - 12.7 cm) in 0.25" (0.64 cm) increments
• Number of Blades: 3
• Hour Meter: Standard
• Spindle Bearings: Greaseless ball bearings
• Spindle Housing: 9" (22.9 cm) diameter cast aluminum
• Steering Controls: Twin lever

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch
